Flying F Series

Fiber laser online coding equipment

The Flying F series equipment is based on Fiber lasers which widely used in materials such as metal, PVC, HDPE, aluminum film and rubber. Application areas include food, beverages, dairy products, apparel industry, pharmaceuticals, daily chemical products. It can clearly mark the production date, QR code, letters, and graphics.

Detailed information

Product Features
Product Features
Application Scenarios
Product Parameters
Product size
Application example

产品简介

High-quality fiber lasers, high-quality optical devices;
Beam mode and good sealing, stable and reliable;
Laser life up to 100000 hours;
Flexible optical fiber is more suitable for long-distance transmission and assembly line installation with complex working conditions;

Copy is being updated

Product information update processing, please look forward
Product information update processing, please look forward
Product information update processing, please look forward

Copy is being updated

Product information update processing, please look forward
Product information update processing, please look forward
Product information update processing, please look forward

- High-quality fiber lasers, high-quality optical devices;
- Beam mode and good sealing, stable and reliable;
- Laser life up to 100000 hours;
- Flexible optical fiber is more suitable for long-distance transmission and assembly line installation with complex working conditions;
Product Features
- High-quality fiber lasers, high-quality optical devices;
- Beam mode and good sealing, stable and reliable;
- Laser life up to 100000 hours;
- Flexible optical fiber is more suitable for long-distance transmission and assembly line installation with complex working conditions;
Application Scenarios

Product Parameters

FlyingF Series
Equipment Model		Flying30F	Flying50F	Flying100F	Flying200F
laser power		30W	50W	100W	200W
Marking parameters	focus lens	F = 160mm (standard)	F = 100mm (optional)	F = 210mm (optional)	F = 254mm (optional)
	Marking range	110mm × 110mm	70mm × 70mm	145mm × 145mm	175mm × 175mm
	Font Type	Built-in a variety of standard fonts can be selected, special fonts can be generated and re-edited
	Support printing content	Text information, variable information, serial number, lot number, QR code, logo and graphic image
	Marking speed	≤ 12000 mm/s, the actual use of marking speed depends on the material
	Mark minimum line width	0.1mm (depending on material)
Marking laser	Laser Type	fiber laser
	laser wavelength	1064nm
	Power stability (average power)	5% rms
Other	Operating ambient temperature	External ambient temperature 0-40 ℃(32-105 °F), ambient humidity 10%-90%, no condensation
	approximate weight	Laser head: 9KG control box: 21KG	Laser head: 9KG control box: 21KG	Laser head: 9KG control box: 25KG	Laser head: 9KG control box: 25KG
	Communication Interface	Network port, serial port, USB port

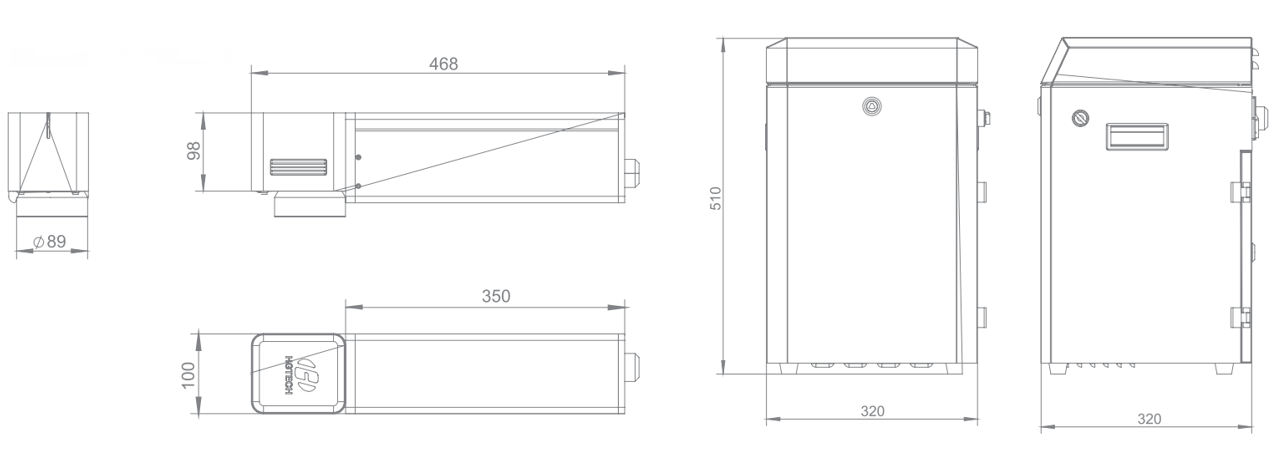

Product size

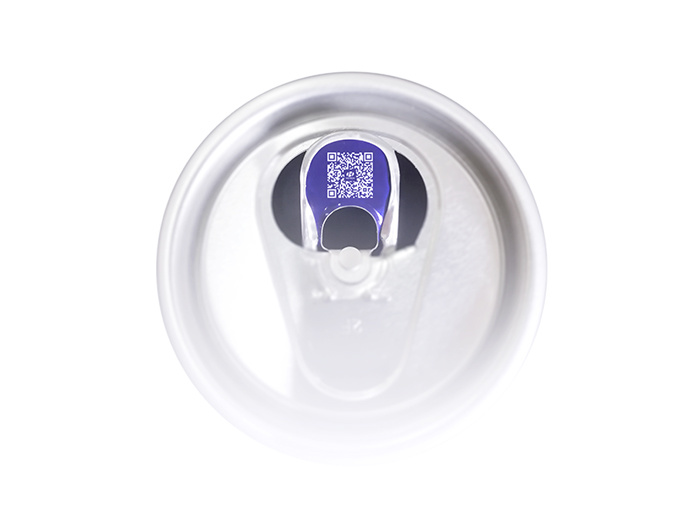

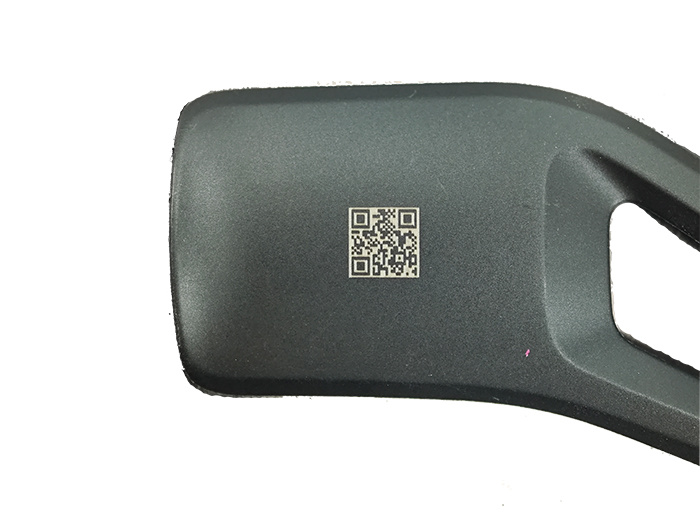

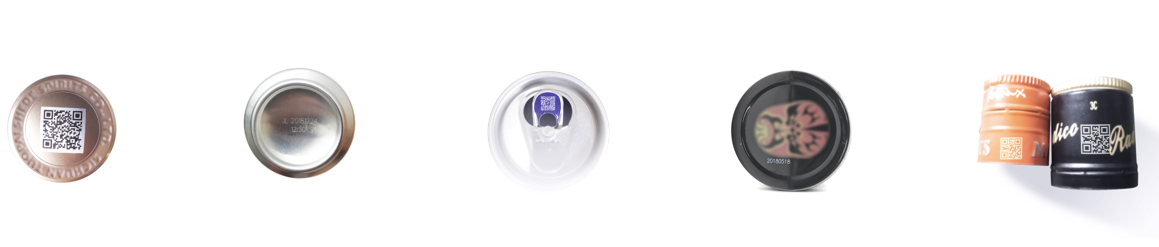

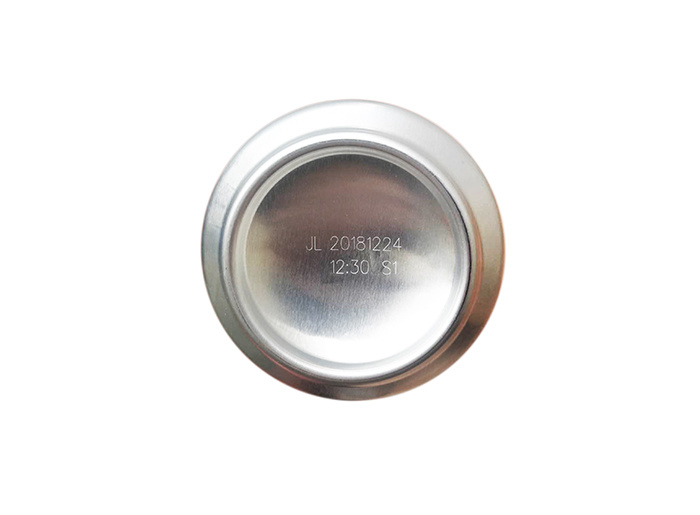

Application example
