Flying UV Series

Ultraviolet laser on-line coding equipment

The Flying UV series equipment is based on ultraviolet lasers which widely used in materials such as PPR, PVC, and PE. Application areas include food, beverages, dairy products, pharmaceuticals, daily chemical products and pipes. It can clearly mark the production date, QR code, letters, and graphics.

Detailed information

Ultraviolet laser on-line coding equipment

Product Features
Product Features
Application Scenarios
Product Parameters

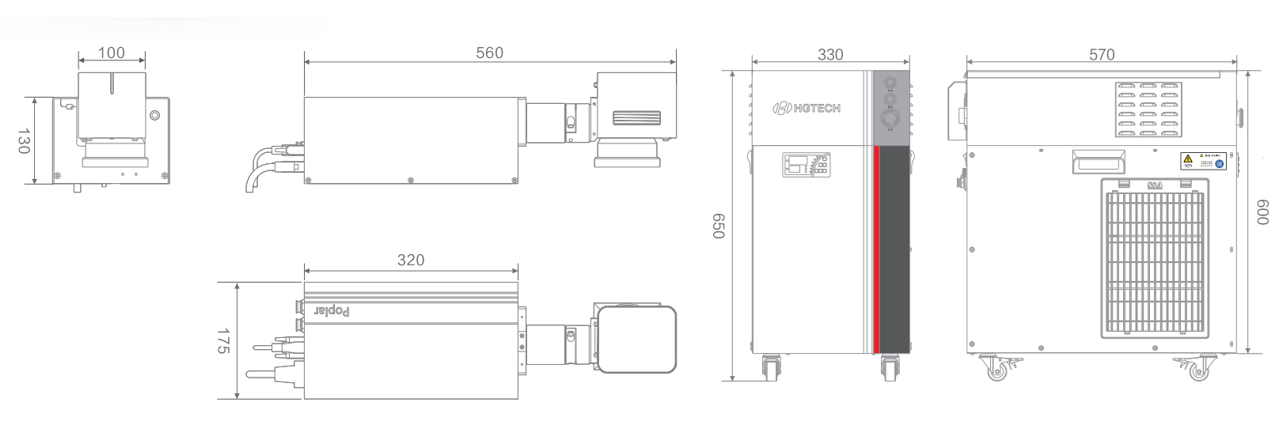

Product size

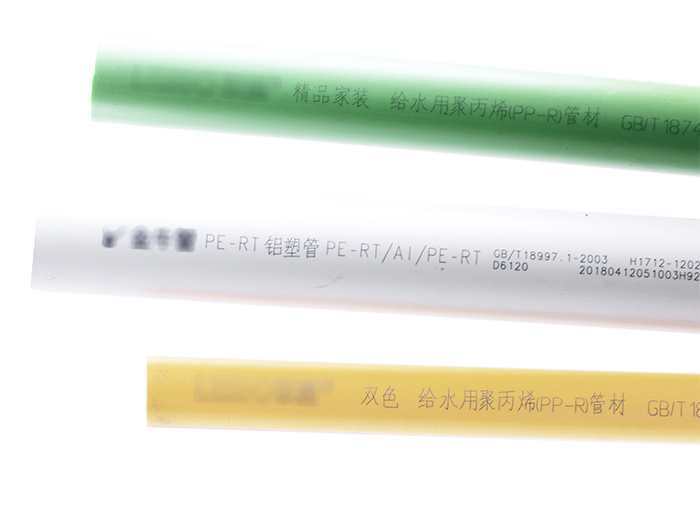

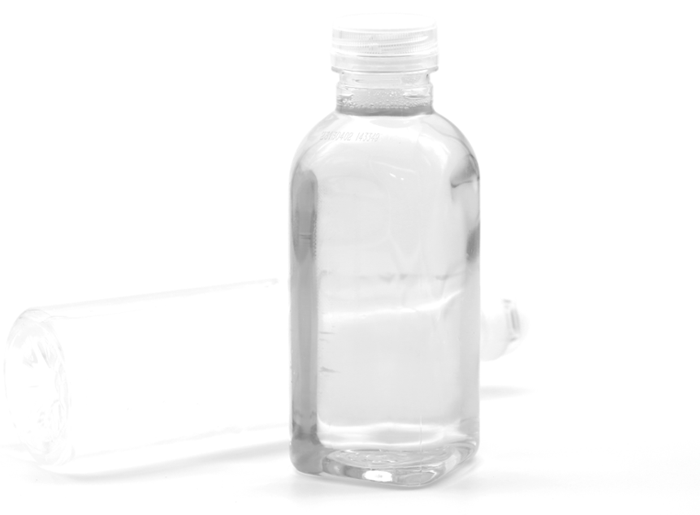

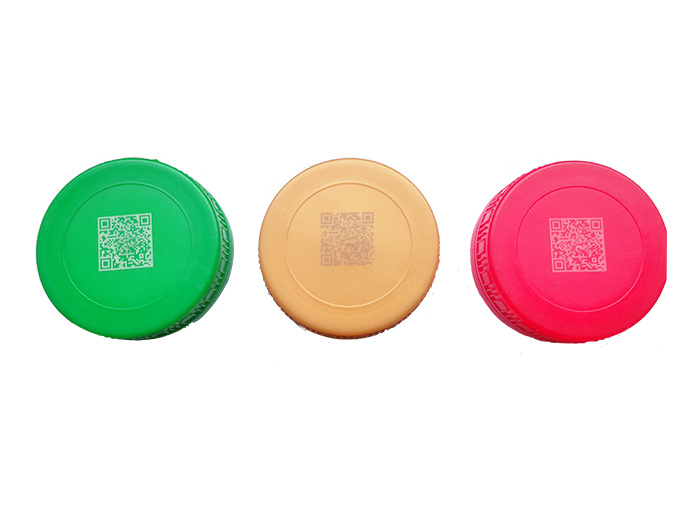

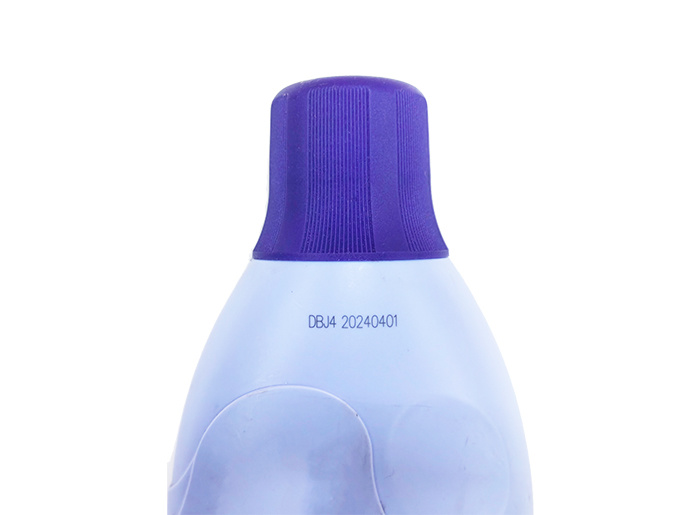

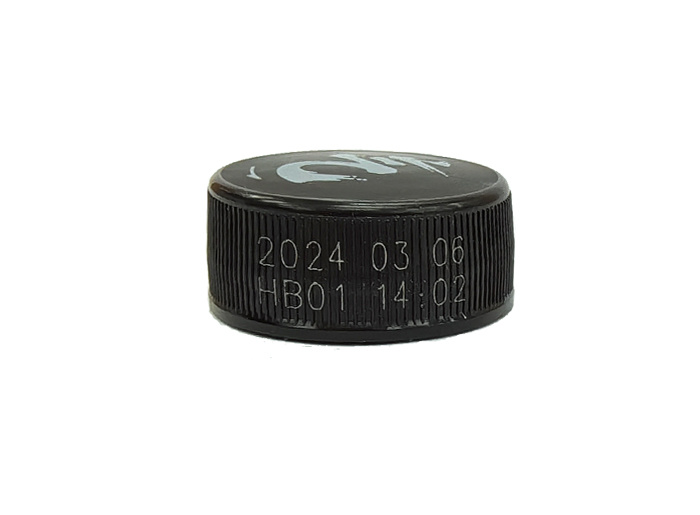

Application example

产品简介

Short-wavelength high-quality ultraviolet laser focusing spot is smaller;
Narrow pulse width of the laser and the material action time is short;
The heat effect is small, and the marking effect is more beautiful;
Able to achieve fine marking of special materials;

Copy is being updated

Product information update processing, please look forward
Product information update processing, please look forward
Product information update processing, please look forward

Copy is being updated

Product information update processing, please look forward
Product information update processing, please look forward
Product information update processing, please look forward

- Short wavelength high quality ultraviolet laser focusing spot is smaller;
- Narrow pulse width of the laser and the material action time is short;
- The heat effect is small, and the marking effect is more beautiful;
- Able to achieve fine marking of special materials;
Product Features
- Short wavelength high quality ultraviolet laser focusing spot is smaller;
- Narrow pulse width of the laser and the material action time is short;
- The heat effect is small, and the marking effect is more beautiful;
- Able to achieve fine marking of special materials;
Application Scenarios

Product Parameters

FlyingUV Series
Equipment Model		Flying5U	Flying10U	Flying15U	Flying20U
laser power		5W	10W	15W	20W
Marking parameters	focus lens	F = 160mm (standard)	F = 210mm (optional)	F = 254mm (optional	F = 300mm (optional
	Marking range	100mm × 100mm	160mm × 160mm	175mm × 175mm	220mm × 220mm
	Font Type	Built-in a variety of standard fonts can be selected, special fonts can be generated and re-edited
	Support printing content	Text information, variable information, serial number, lot number, QR code, logo and graphic image
	Marking speed	≤ 12000 mm/s, the actual use of marking speed depends on the material
	Mark minimum line width	0.1mm (depending on material)
Marking laser	Laser Type	ultraviolet laser
	laser wavelength	355nm
	Power stability (average power)	±5%rms
Other	Operating ambient temperature	External ambient temperature 0-40 ℃(32-105 °F), ambient humidity 10%-90%, no condensation
	System power supply	1KWIAC220V/50Hz	1KW/AC220V/50Hz	1.2KWIAC220V/50Hz	1.2KW/AC220V/50Hz
	approximate weight	Laser head: 20KG control box: 21KG	Laser head: 55KG control box: 22KG	Laser head: 55KG control box: 22KG	Laser head: 55KG control box: 25KG
	Communication Interface	Network port, serial port, USB port
