LW Series

Laser hand welding

Hand-held laser welding uses high-energy laser pulses to locally heat materials in a small area. The energy of laser radiation diffuses to the inside of the material through heat conduction, and forms a specific molten pool after melting the material. It is a new type of welding method, mainly for thin-walled materials, precision parts welding, spot welding, butt welding, overlap welding, seal welding, etc., with high aspect ratio, the weld width is small, the heat affected zone is small, the deformation is small, the welding speed is fast, the weld is smooth, beautiful, the weld quality is high, no pores, can be precisely controlled, the focus spot is small, and the positioning accuracy is high.

Detailed information

Product Features
Product Features
Application Scenarios
Product Parameters
Product size
Application example

产品简介

One machine to handle a variety of materials
Easy to get started with welding;
0 Welding experience
1 Heavenly hand;
Multiple ways of welding
Save worry and effort;
Cost savings
2-5 welders can be saved;
Move
360 ° flexible movement;

Copy is being updated

Product information update processing, please look forward
Product information update processing, please look forward
Product information update processing, please look forward

Copy is being updated

Product information update processing, please look forward
Product information update processing, please look forward
Product information update processing, please look forward

- One machine to handle a variety of materialsEasy to get started with welding
- 0 Welding experience1 Hand in Heaven
- Multiple ways of weldingSave worry and effort
- welding efficiency3-10 times higher than ordinary workers
- Cost savingsSave 2-5 welders
- Move360 ° flexible movement
Product Features
- One machine to handle a variety of materialsEasy to get started with welding
- 0 Welding experience1 Hand in Heaven
- Multiple ways of weldingSave worry and effort
- welding efficiency3-10 times higher than ordinary workers
- Cost savingsSave 2-5 welders
- Move360 ° flexible movement
Application Scenarios

HG-LW laser hand welding series
Equipment Model		HG-LW1000	HG-LW1500	HG-LW2000
Laser and Welding Process	Laser	fiber laser
	laser wavelength	1080±5nm
	Rated output power	1000W	1500W	2000W
	Working mode	Continuous/Modulated
	Fiber Length	Standard 10m, maximum support 15m
	Welding speed range	0-120mm/s
	Welding thickness range	0.5-3mm
	Weld requirements	≤0.2mm
	Welding head	Swing, single pendulum/double pendulum
	Applicable material	Aluminum, carbon steel, stainless steel, galvanized sheet, etc;
	collimation focal length	50mm
	focus focal length	120mm
Cooling system	Cooling mode	Water cooling
Other preparation	Wire Feeding Machine	Standard
complete machine	Dimensions	Length 880mmx width 560mmx height 1150mm (length * width * height)		Length 920mmx width 560mmx height 1150mm (length * width * height)
	Weight	170KG		190KG
Operating environment	System power supply	6.5KW/AC220V/50Hz	8.0KW/AC220V/50Hz	9.5KW/AC220V/50Hz
		The voltage fluctuation range is ± 5%. If the fluctuation range is exceeded, the regulator device shall be prepared.	The voltage fluctuation range is ± 5%. If the fluctuation range is exceeded, the regulator device shall be prepared.	The voltage fluctuation range is ± 5%. If the fluctuation range is exceeded, the regulator device shall be prepared.
	Auxiliary gas	Nitrogen/Argon
	Grounding	The ground wire of the power grid shall meet the requirements of the national standard.
	Ambient temperature	10~35 ℃
	Ambient humidity	<70% No Frost

Product Parameters

HG-LW laser hand welding series
Equipment Model		HG-LW1000	HG-LW1500	HG-LW2000
Laser and Welding Process	Laser	fiber laser
	laser wavelength	1080±5nm
	Rated output power	1000W	1500W	2000W
	Working mode	Continuous/Modulated
	Fiber Length	Standard 10m, maximum support 15m
	Welding speed range	0-120mm/s
	Welding thickness range	0.5-3mm
	Weld requirements	≤0.2mm
	Welding head	Swing, single pendulum/double pendulum
	Applicable material	Aluminum, carbon steel, stainless steel, galvanized sheet, etc;
	collimation focal length	50mm
	focus focal length	120mm
Cooling system	Cooling mode	Water cooling
Other preparation	Wire Feeding Machine	Standard
complete machine	Dimensions	Length 880mmx width 560mmx height 1150mm (length * width * height)		Length 920mmx width 560mmx height 1150mm (length * width * height)
	Weight	170KG		190KG
Operating environment	System power supply	6.5KW/AC220V/50Hz	8.0KW/AC220V/50Hz	9.5KW/AC220V/50Hz
		The voltage fluctuation range is ± 5%. If the fluctuation range is exceeded, the regulator device shall be prepared.	The voltage fluctuation range is ± 5%. If the fluctuation range is exceeded, the regulator device shall be prepared.	The voltage fluctuation range is ± 5%. If the fluctuation range is exceeded, the regulator device shall be prepared.
	Auxiliary gas	Nitrogen/Argon
	Grounding	The ground wire of the power grid shall meet the requirements of the national standard.
	Ambient temperature	10~35 ℃
	Ambient humidity	<70% No Frost

Product size

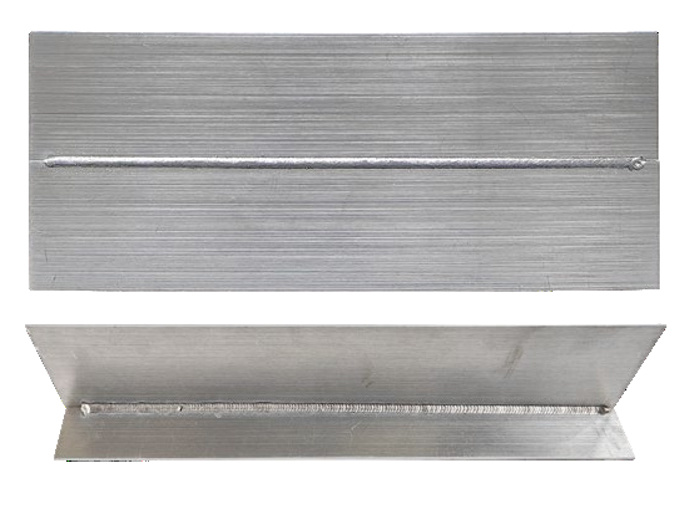

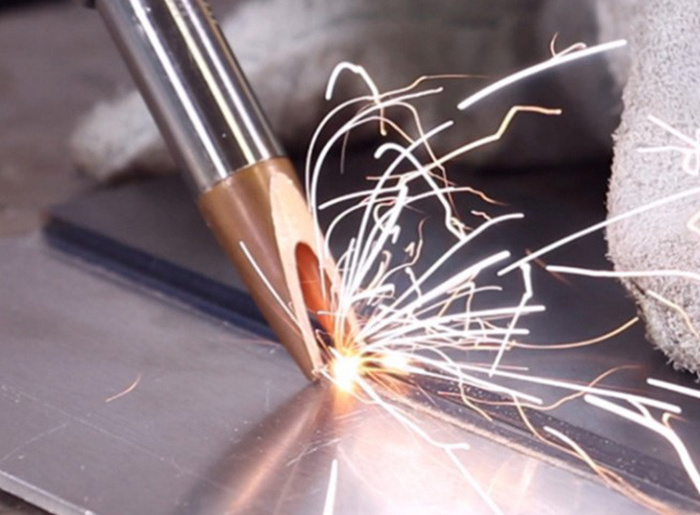

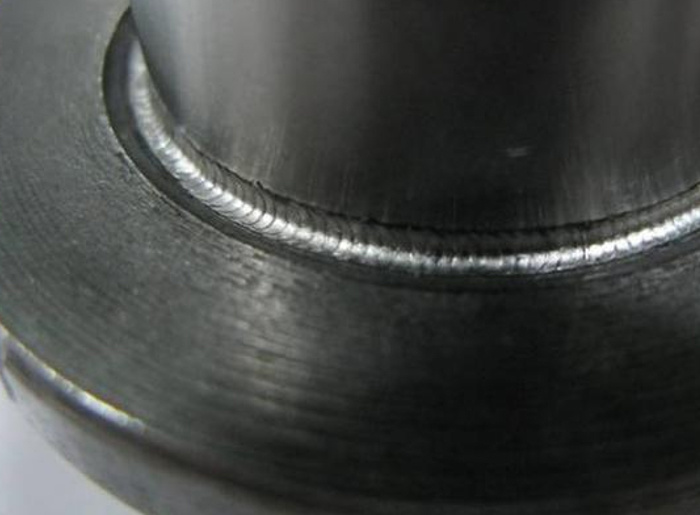

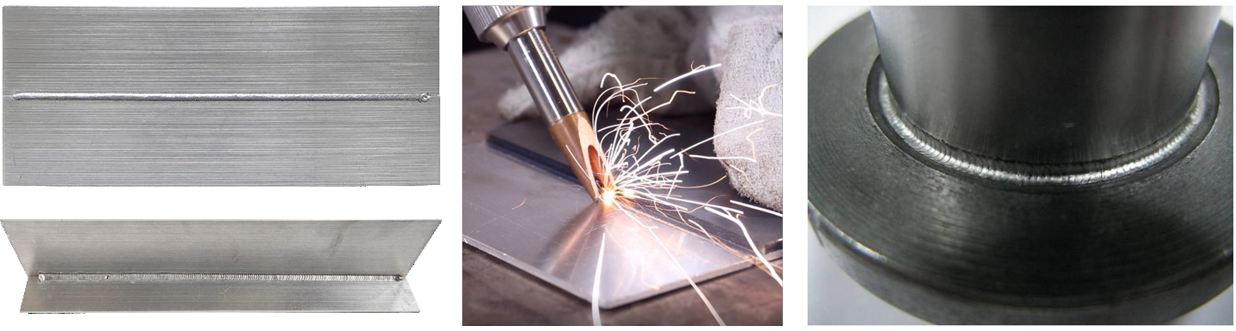

Application example
