HGMV 01A/02A
OCR Character Detection System
HGMV:OCR character detection system online high-speed visual inspection system is used for visual inspection of various types of packaging in the field of fast-food products to solve the detection needs of product appearance, identification and positioning. The system is based on the HGVision algorithm platform of independent intellectual property rights, and the detection efficiency can be as high as 72000 pcs/h. More than 10 years of industry experience, for the fast consumer goods industry product production quality escort.
- Product Features
- Product Features
- Application Scenarios
- Product Parameters
- Product size
- Application example
-
产品简介
Highly integrated design, to meet the syringe industry in the production process of visual inspection needs, can be remote or optional monitor debugging, production monitoring;
Rich IO interface, can access multiple input and output signals, and field industrial equipment for docking;
Support three-color indicator, log can be saved and exported, monitoring production records;
Support external expansion modules to meet different application requirements, support real-time data, image preservation;
Adapt to the harsh medical production environment, stainless steel material in line with the medical device industry safety standards;
Adapt to the rich light source type selection, adapt to most of the application scenarios;
Copy is being updated
- Product information update processing, please look forward
- Product information update processing, please look forward
- Product information update processing, please look forward
Copy is being updated
- Product information update processing, please look forward
- Product information update processing, please look forward
- Product information update processing, please look forward
-
Product Features
- Highly integrated design to meet the needs of fast-moving consumer goods high-speed visual inspection, remote or optional monitor debugging, production monitoring;
- Rich IO interface, can access multiple input and output signals, and field industrial equipment for docking;
- Support three-color indicator, log can be saved and exported, monitoring production records;
- Support external expansion modules to meet different application requirements, support real-time data, image saving, backtracking, reporting;
- Adapt to the harsh industrial application environment, stainless steel material in line with food industry safety standards;
- Adapt to a wealth of light source type options, to adapt to most of the application scenarios.
Scope of application

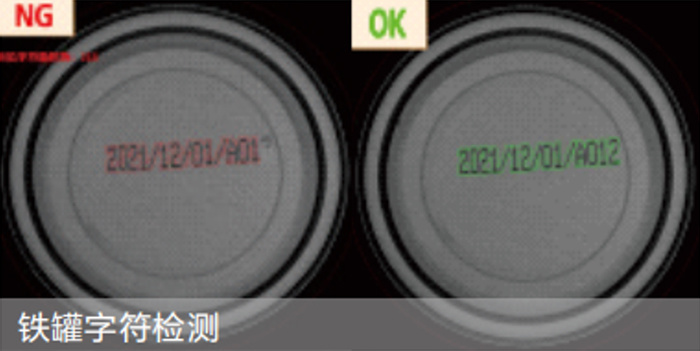

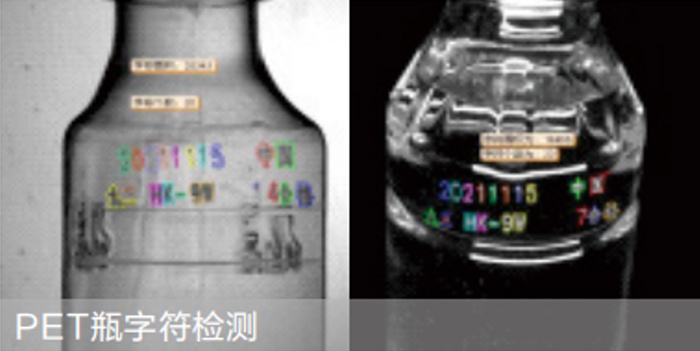

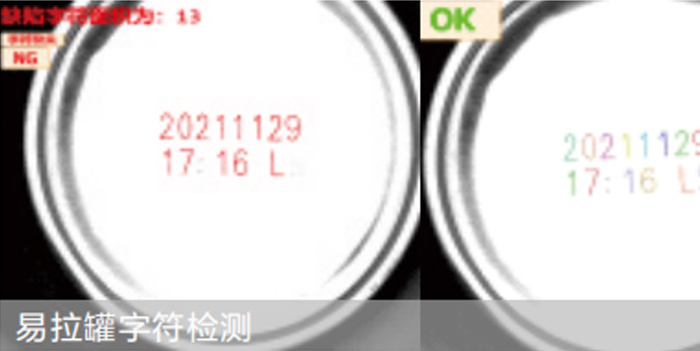

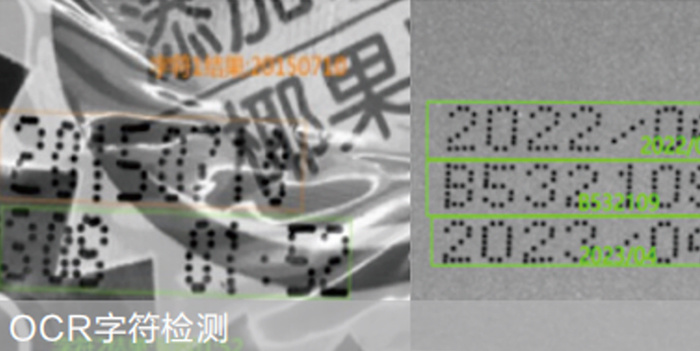

Detection of characters after laser or ink coding of PE bottles/PET bottles/glass bottles/cans and other products
Installation position
After the laser machine or inkjet printer, online installation
Detection function
Character presence, absence, absence, character recognition, etc.
Culling function
Can support production line linkage alarm or NG product precise rejection
-

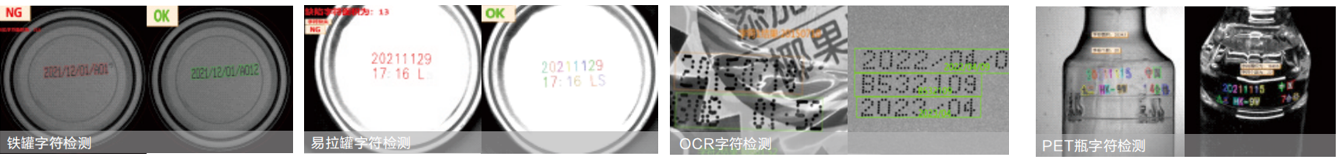

Application Scenarios
-
Product Parameters
HGMV OCR Character Detection System
Model
HGMV01A
HGMV02A
Name
OCR Character Detection System for Can Products
PET bottle OCR character detection system
Basic information
Overall dimension
Cabinet: 500x 350x 1030mm bracket: 500 x400x1800mm (can be customized according to actual needs)
Adapt to the environment
Working temperature 0~50 ℃, storage temperature -30~70 ℃,20% ~ 95% RH without condensation
three-color lamp
Run/Standby/NG tri-color, audible alarm
Visual Components
Resolution
1920x 1200(2 million pixels) 2448x 2048(5 million pixels) 4096x 2160(8 million pixels)
Maximum Acquisition Frame Rate
91fps
22fps
Color
Black and White/Color
Light source
Optional size: ring, strip combination, dome, coaxial, infrared color: support serial control color
Sensor Type
CMOS, Global Shutter
Control System
industrial computer
ntelCore 15 Quad Core Processor, 8G Memory, 256GSSD
Operating System
Windows1064 bit
detection software
HGvision-MV01 V1.0
HGvision-MV02V1.0
Electrical System
Data Interface
GigE interface
Digital VO
Support 3 optocoupler inputs (Lineln O/1/2),3 optocoupler outputs (LineOut 0/1/2),1 RS-485
Extended Interface
Externable Expansion Module
Power supply
Access power supply 220VAC, built-in 24 VDC
Power consumption
500W
-
Product size
-
Application example
