HGMV 03D
On-line Inspection System for Product Defects in Medical Device Industry
The HGMV 03D product defect online inspection system is used for visual inspection of the appearance quality of various products in the medical device industry, solving the quality inspection requirements such as black spots, hair, missing pistons, missing needles, missing needle sheaths, etc. after assembly of syringe products. The system is based on the HGVision algorithm platform of independent intellectual property rights, and the detection efficiency is 10000-20000 units/hour. More than 10 years of industry experience, for the medical device industry product production quality escort.
- Product Features
- Product Features
- Application Scenarios
- Product Parameters
- Product size
- Application example
-
产品简介
Highly integrated design, to meet the syringe industry in the production process of visual inspection needs, can be remote or optional monitor debugging, production monitoring;
Rich IO interface, can access multiple input and output signals, and field industrial equipment for docking;
Support three-color indicator, log can be saved and exported, monitoring production records;
Support external expansion modules to meet different application requirements, support real-time data, image preservation;
Adapt to the harsh medical production environment, stainless steel material in line with the medical device industry safety standards;
Adapt to the rich light source type selection, adapt to most of the application scenarios;
Copy is being updated
- Product information update processing, please look forward
- Product information update processing, please look forward
- Product information update processing, please look forward
Copy is being updated
- Product information update processing, please look forward
- Product information update processing, please look forward
- Product information update processing, please look forward
-
Product Features
- Highly integrated design, to meet the syringe industry in the production process of visual inspection needs, can be remote or optional monitor debugging, production monitoring;
- Rich IO interface, can access multiple input and output signals, and field industrial equipment for docking;
- Support three-color indicator, log can be saved and exported, monitoring production records;
- Support external expansion modules to meet different application requirements, support real-time data, image preservation;
- Adapt to the harsh medical production environment, stainless steel material in line with the medical device industry safety standards;
- Adapt to a wealth of light source type options, to adapt to most of the application scenarios.
Scope of application
2.5-50ml syringe
Installation position
After the assembly machine, before the conveyor belt of the packaging machine (on-line production position); After the assembly machine (off-line production position)
Detection function

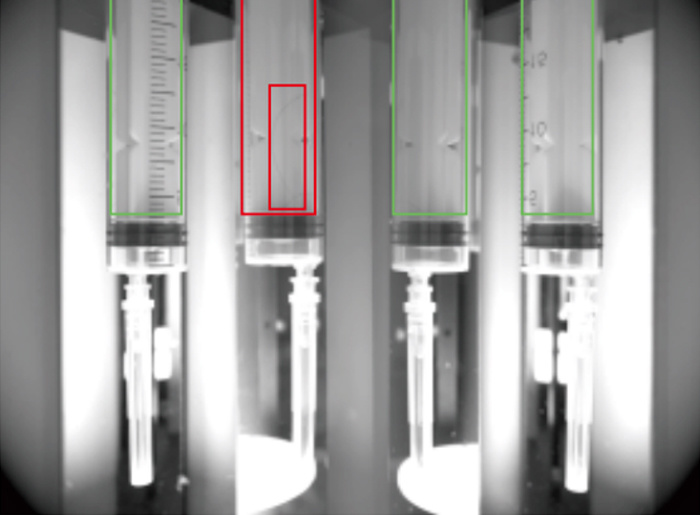

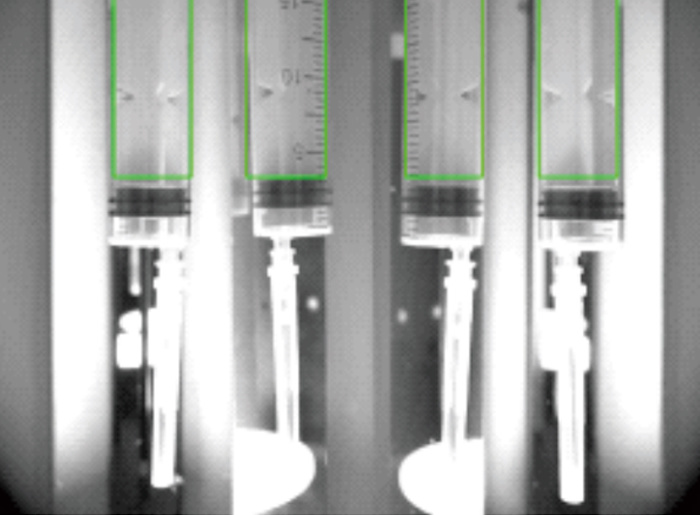

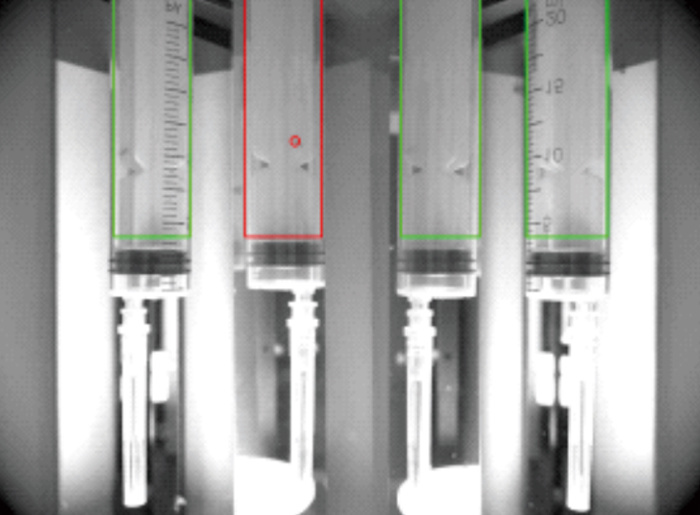

Black spots, hair, cylinder surface tick mark detection, missing piston, missing needle, missing needle sheath, etc.
-
Application Scenarios
-
Product Parameters
HGMV Medical Industry Product Defect Inspection Online Testing System
Model
Model
HGMV03D
Name
Product defect online detection system
Basic information
Overall dimension
910mm × 710mm × 1800mm (can be customized according to actual needs)
Adapt to the environment
Working temperature 0~50 ℃, storage temperature -30~70 ℃,20% ~ 95% RH without condensation
three-color lamp
Run/Standby/NG tri-color, audible alarm
Visual Components
Resolution
2448x 2048(5 million pixels)
Maximum Acquisition Frame Rate
22fps
Color
black and white
Light source
360 Vision Module, Ring Light Source
Sensor Type
CMOS, Global Shutter
Control System
industrial computer
CPU:I7-6700 8G memory, 500G SSD
Operating System
Windows10 64-bit
detection software
HGvision-MV3D V1.0
Electrical System
Data Interface
RS232,GigE interface
Digital I/O
Support 3 optocoupler inputs (LineIn 0/1/2) and 3 optocoupler outputs (LineOut 0/1/2)
Extended Interface
External expansion module, IO, AD, DA, RS232, RS485
Power supply
Access power supply 220V AC, built-in 24V DC
Power consumption
1200W
-
Product size
-

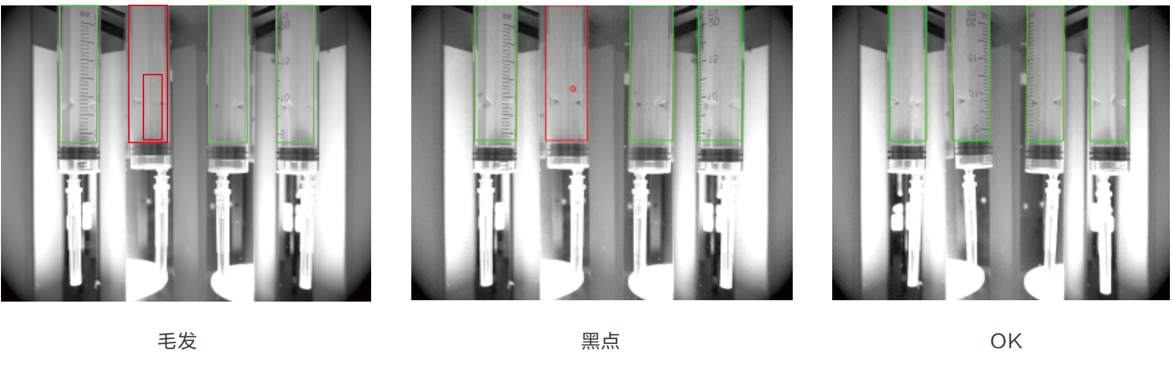

Application example
